Part Name: Titan-6M
Certification Path: Titans of CNC – SolidWorks Series
Software: SolidWorks
Skills Demonstrated:

Precision feature cutouts

Smart dimensioning and sketch constraints

Use of Hole Wizard and fillets

Tolerancing and clear drawing communication

Feature order planning and parametric updates

About This Part:
Titan-6M increased the complexity with intersecting internal features, deeper cuts, and tighter dimensional relationships. This part required careful attention to the feature order, since the geometry depends on properly nested extrusions and clean sketch management.

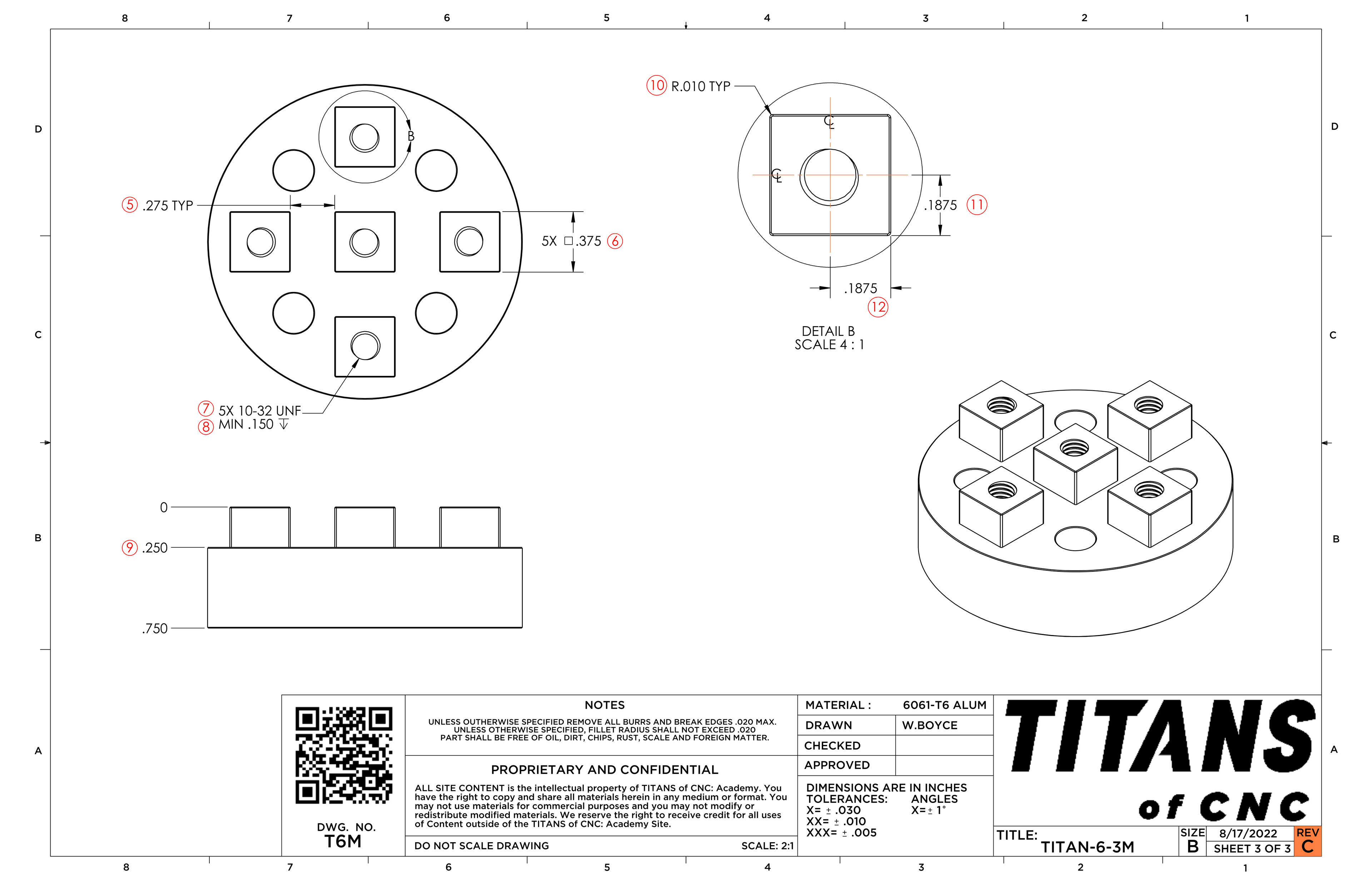

The biggest challenge was aligning multiple internal cutouts while maintaining the part's symmetry and machining intent. I used SolidWorks to model the geometry based on the official Titans print and created a clean, fully toleranced drawing to match. This model was submitted and approved for certification.

Deliverables Included:

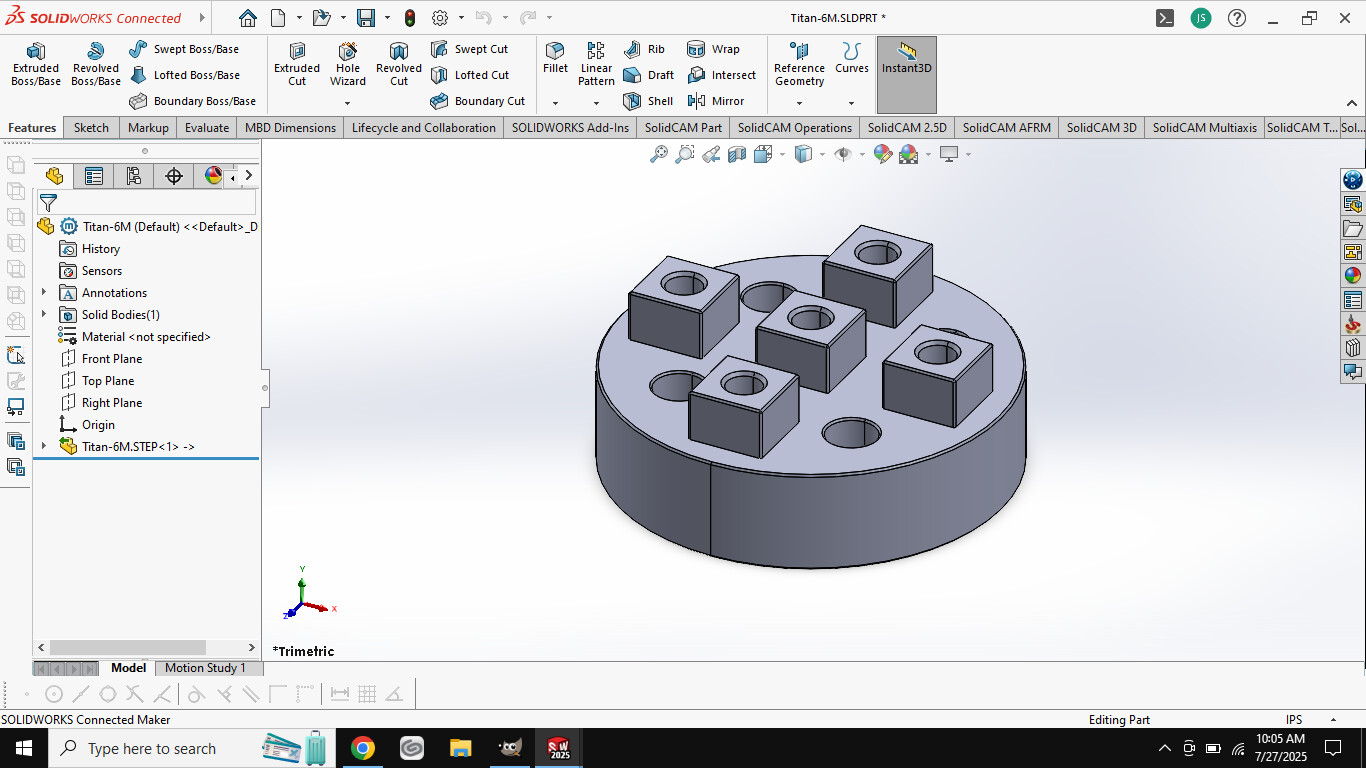

SolidWorks model screenshot

Completed 2D drawing

Reference print

Certificate of completion
