Part Name: Titan-8M
Certification Path: Titans of CNC – SolidWorks Series
Software Used: SolidWorks
Skills Demonstrated:

Internal pocket design

Step-down cut features

Smart sketching with reference geometry

Clean 2D drawing creation with tolerances

Machining-conscious modeling techniques

About This Part:
Titan-8M focuses on internal features and cut pockets that require a precise understanding of depth control and edge relationships. This part pushed me to improve my sketch setup and think ahead about feature sequence — especially when creating multi-level pockets that need clean, machined edges.

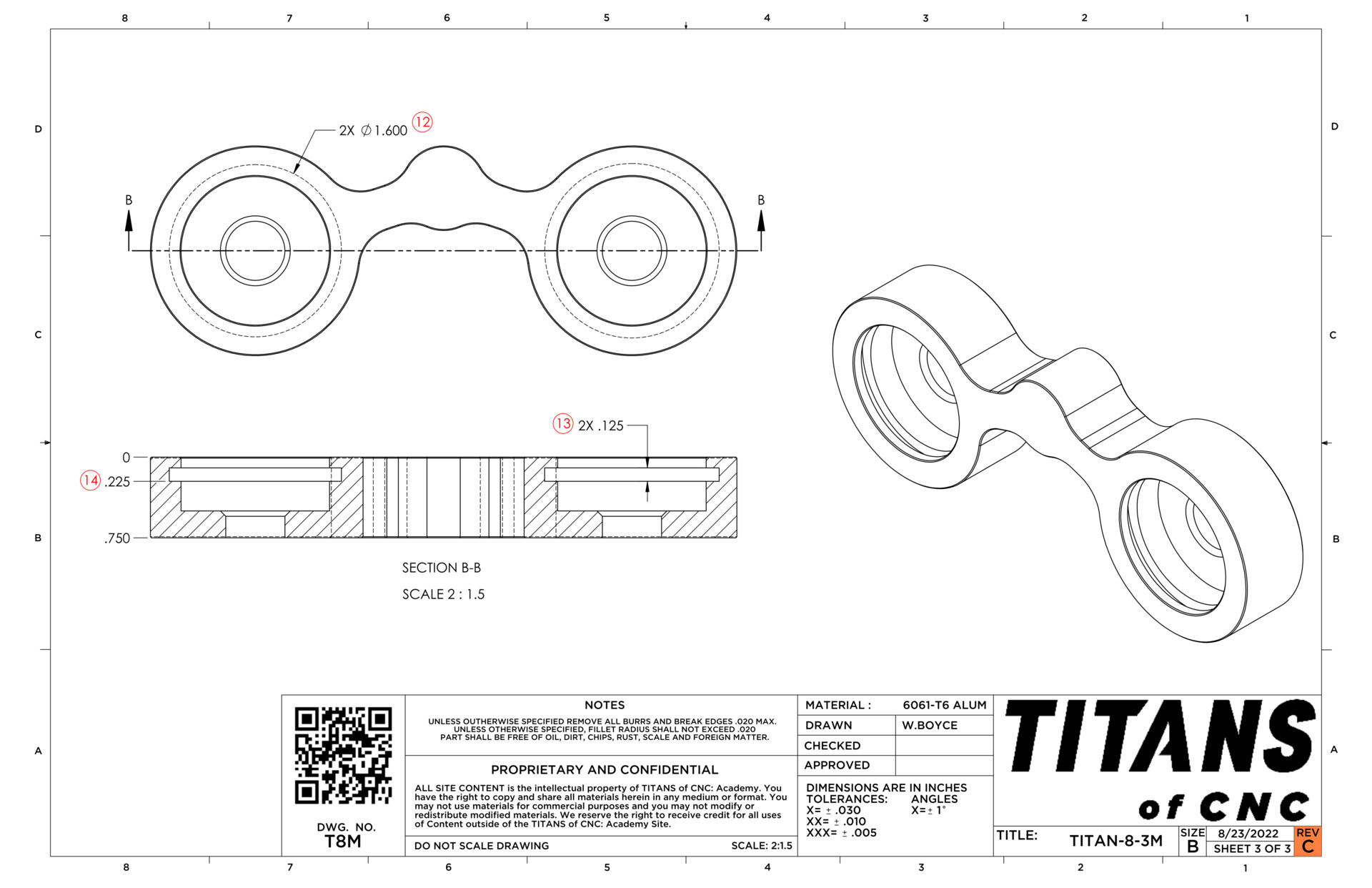

The model required attention to tool access and symmetry, and the 2D drawing needed proper section views and detail callouts for clear interpretation. This part helped reinforce real-world considerations for part inspection and CNC programming.

Deliverables Included:

SolidWorks model screenshots

Fully dimensioned technical drawing

Official Titans print reference

Certificate of completion
