Part Name: Titan-4M
Certification Track: Titans of CNC – SolidWorks Series
Software Used: SolidWorks (Part Modeling + Drawing)
Skills Demonstrated:

Multi-level extrusions and cuts

Complex feature stacking

Chamfers and fillets

Print reading and model translation

Fully defined sketches and parametric design

About This Part:
The Titan-4M is a more advanced step in the Titans of CNC SolidWorks certification path. It introduces a more complex part profile with multiple heights, overlapping features, and tighter tolerances. The biggest challenge was translating the layered geometry of the print into a clean and fully constrained 3D model, while managing feature order and edge cases.

I used SolidWorks to model the part based entirely on the provided print, created a fully dimensioned 2D drawing, and earned my certificate of completion through Titans of CNC.

Deliverables Shown Below:

Screenshot of the modeled part in SolidWorks

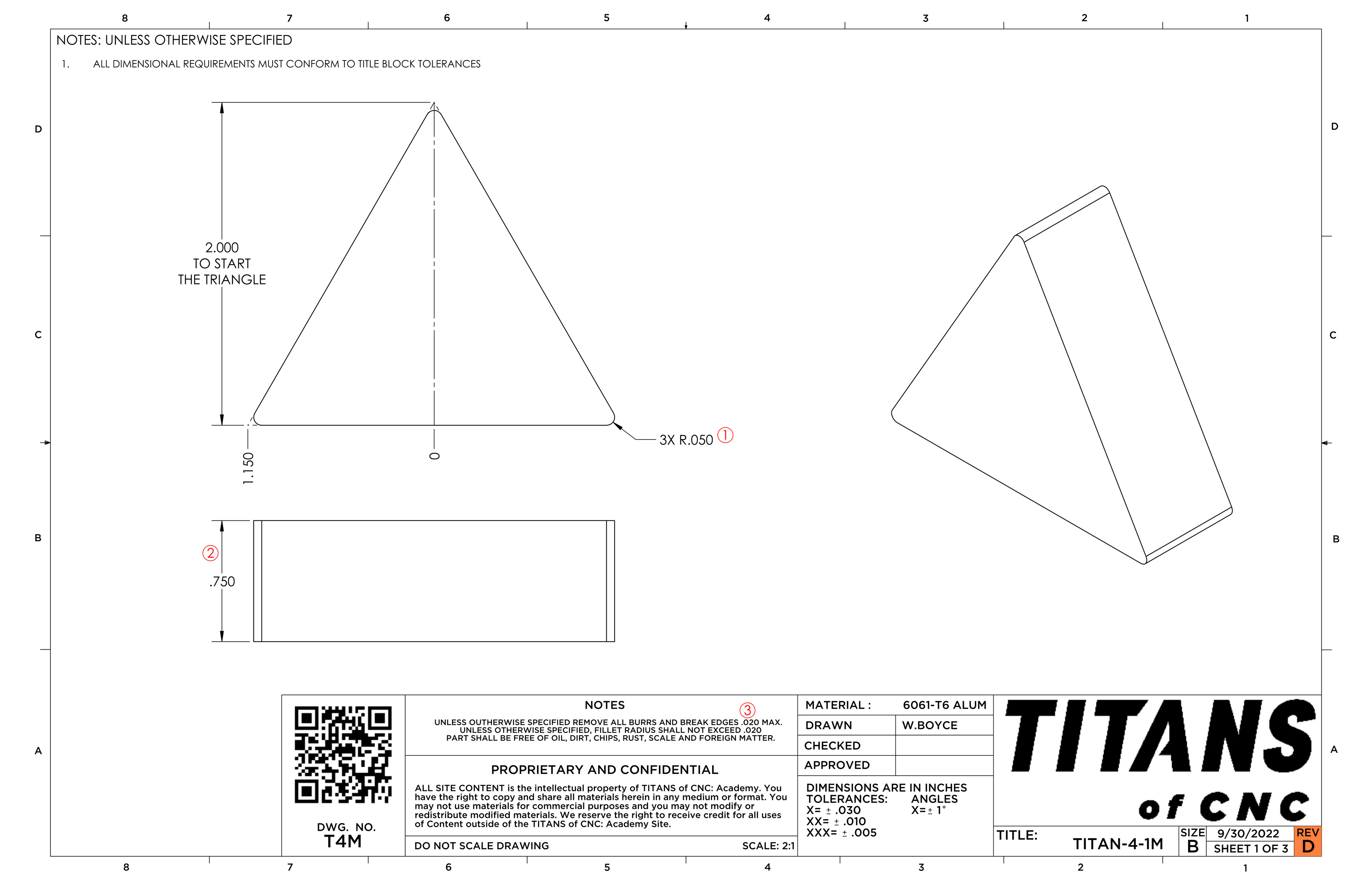

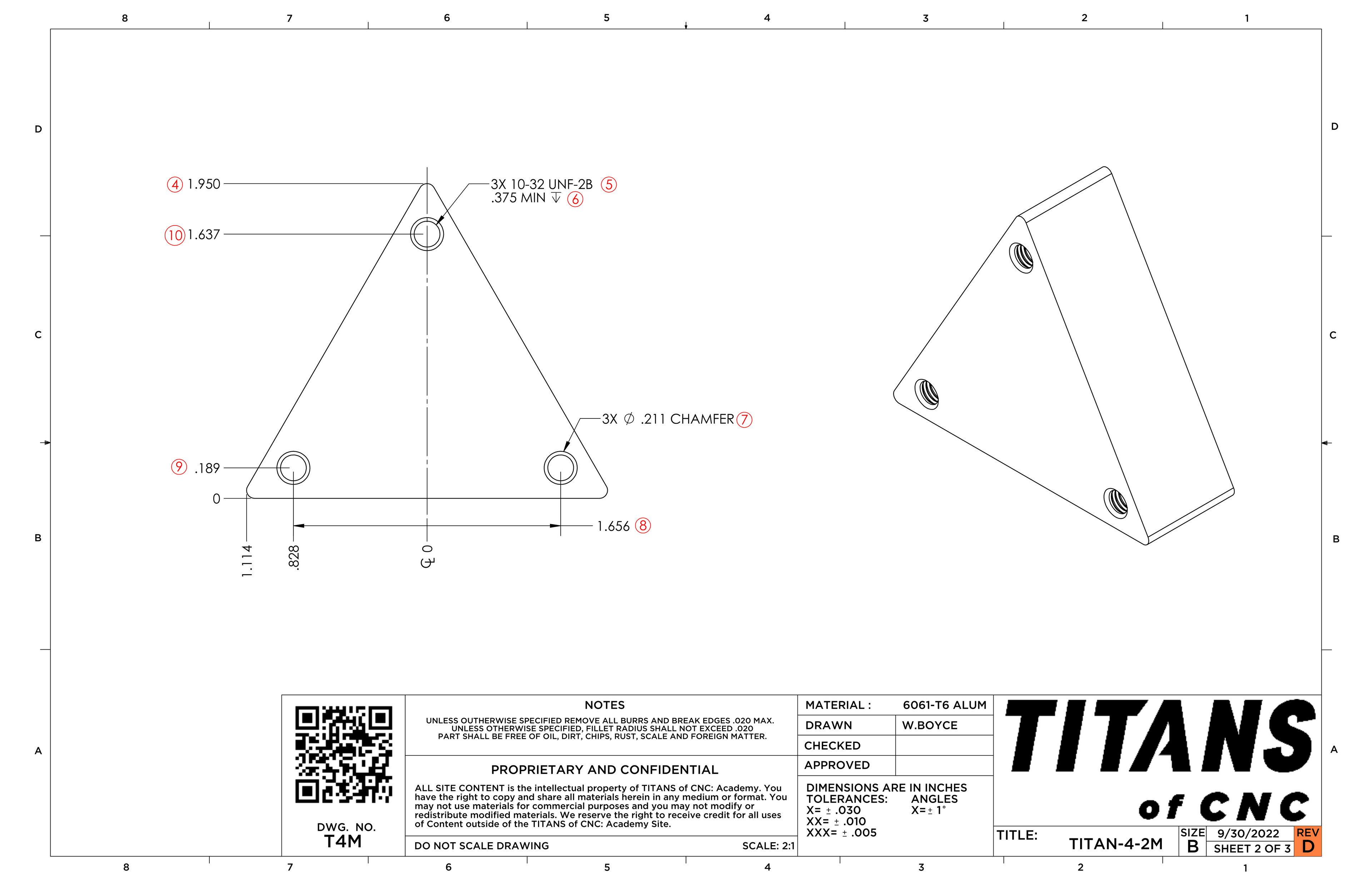

The original Titan-4M print used for reference

My completed 2D engineering drawing

Certificate of completion
