Part Name: Titan-201
Certification Path: Titans of CNC – 5-Axis Series
Software Used: SolidWorks
Skills Demonstrated:

Multi-surface modeling with complex contours

Parametric design for multi-axis machining

Controlled transitions between curved features

Revolved and symmetric geometry

High-detail drawing creation with manufacturing intent

About This Part:
Titan-201 builds on the complexity of earlier 5-axis models by incorporating contoured surface blending and advanced symmetry. It required close attention to curvature continuity and edge detail, with several features that would be extremely difficult to machine on a 3-axis setup.

The part gave me deeper insight into how 5-axis geometry is approached in design — balancing aesthetics, tool access, and machining practicality. I modeled the part in SolidWorks based on the official Titans print, then created a clear and toleranced drawing suitable for real-world shop use.

Deliverables Included:

SolidWorks model screenshots

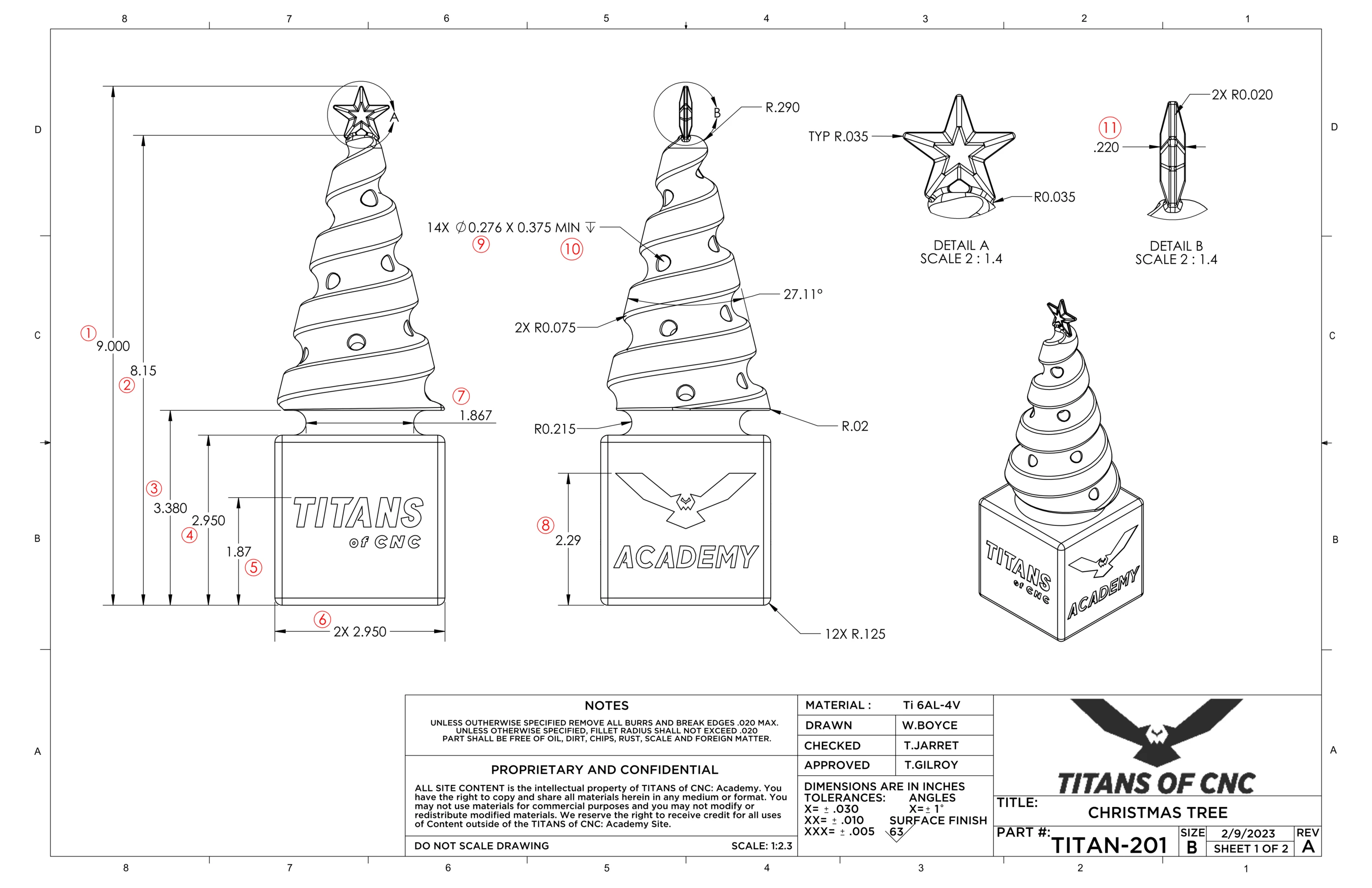

Technical 2D drawing

Titans of CNC reference print

Certificate of completion (5-Axis Series)
