Part Name: Titan-10M
Certification Path: Titans of CNC – SolidWorks Series
Software Used: SolidWorks
Skills Demonstrated:

Stacked extrusions and nested cut features

Toleranced hole placement and edge transitions

Advanced sketch management and constraint logic

Integration of chamfers, fillets, and step geometry

Drawing creation for complex feature communication

About This Part:
Titan-10M is one of the most advanced models in the foundational series — with layered geometry, overlapping cuts, and multiple hole types in a tight layout. This part tested my ability to manage a clean, well-structured feature tree and think ahead like a machinist.

I modeled the part from print, maintained symmetry and dimensional accuracy, and created a fully detailed 2D drawing with tolerances, notes, and precise callouts. Completing this part marked a major milestone in my Titans of CNC certification journey.

Deliverables Included:

3D model screenshots from SolidWorks

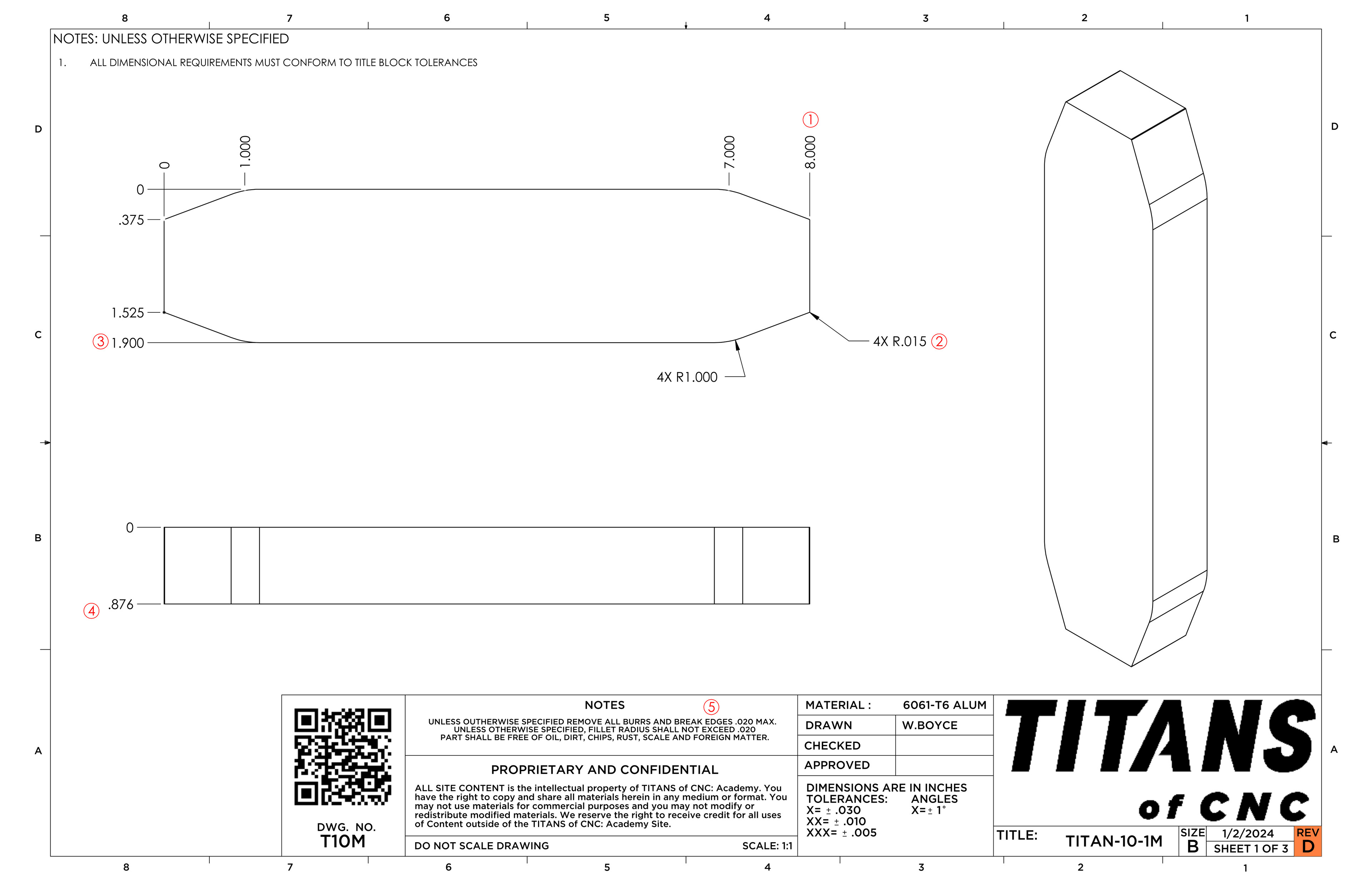

Complete technical drawing

Reference print

Certificate of completion
