Part Name: Titan-139M
Certification Path: Titans of CNC – 5-Axis Series
Software Used: SolidWorks
Skills Demonstrated:
Multi-axis-friendly geometry design
Advanced surfacing and contoured features
Use of reference planes and section control
Symmetrical layout with concentric transitions
Manufacturing-aware modeling for 5-axis CNC
About This Part:
Titan-139M is one of the advanced components in the Titans of CNC 5-Axis Series. The part includes multi-surface contours, recessed profiles, and geometry that would be extremely difficult — or impossible — to machine without a 5-axis setup.
This model deepened my understanding of how part design directly impacts toolpath strategy, machine movement, and fixturing. I focused on precision modeling, keeping surfaces clean and transitions smooth, while still holding to tight tolerances required for high-end manufacturing.
Deliverables Included:

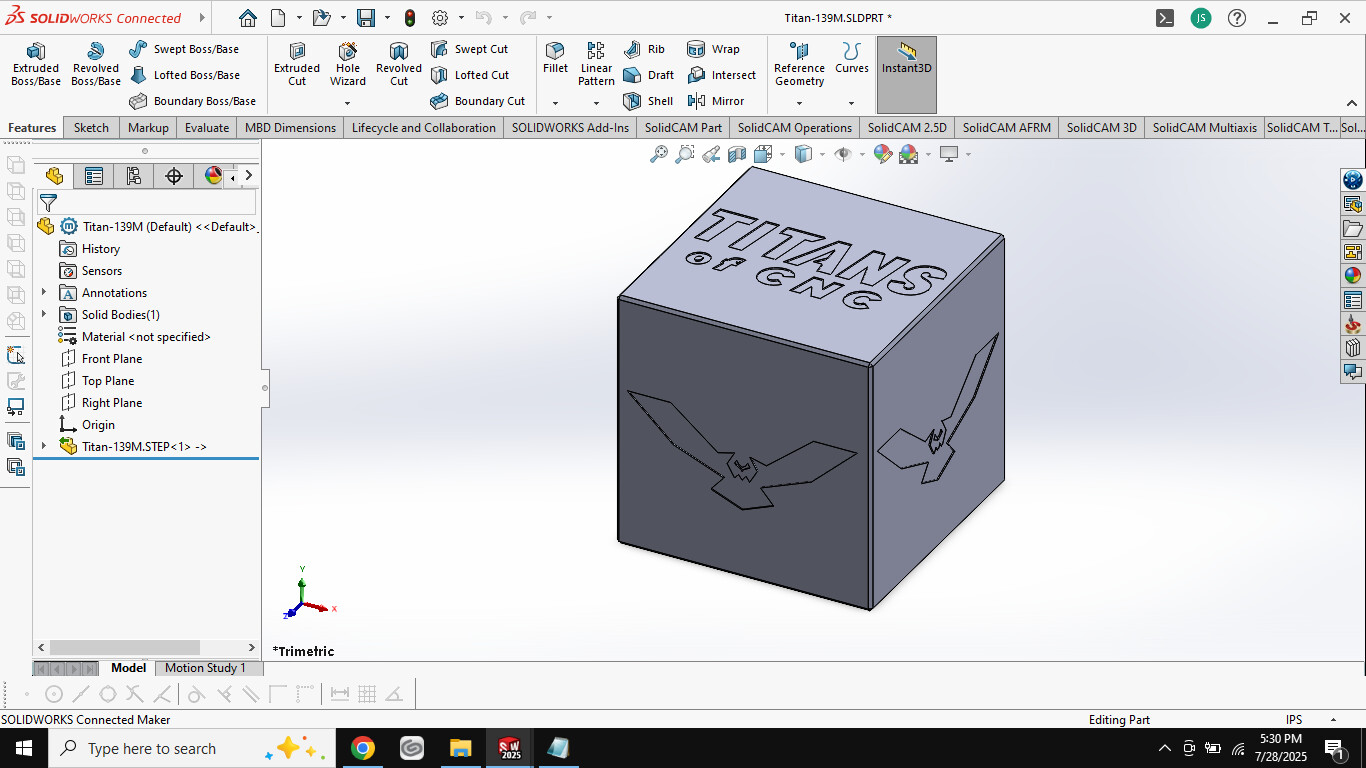

SolidWorks model screenshots

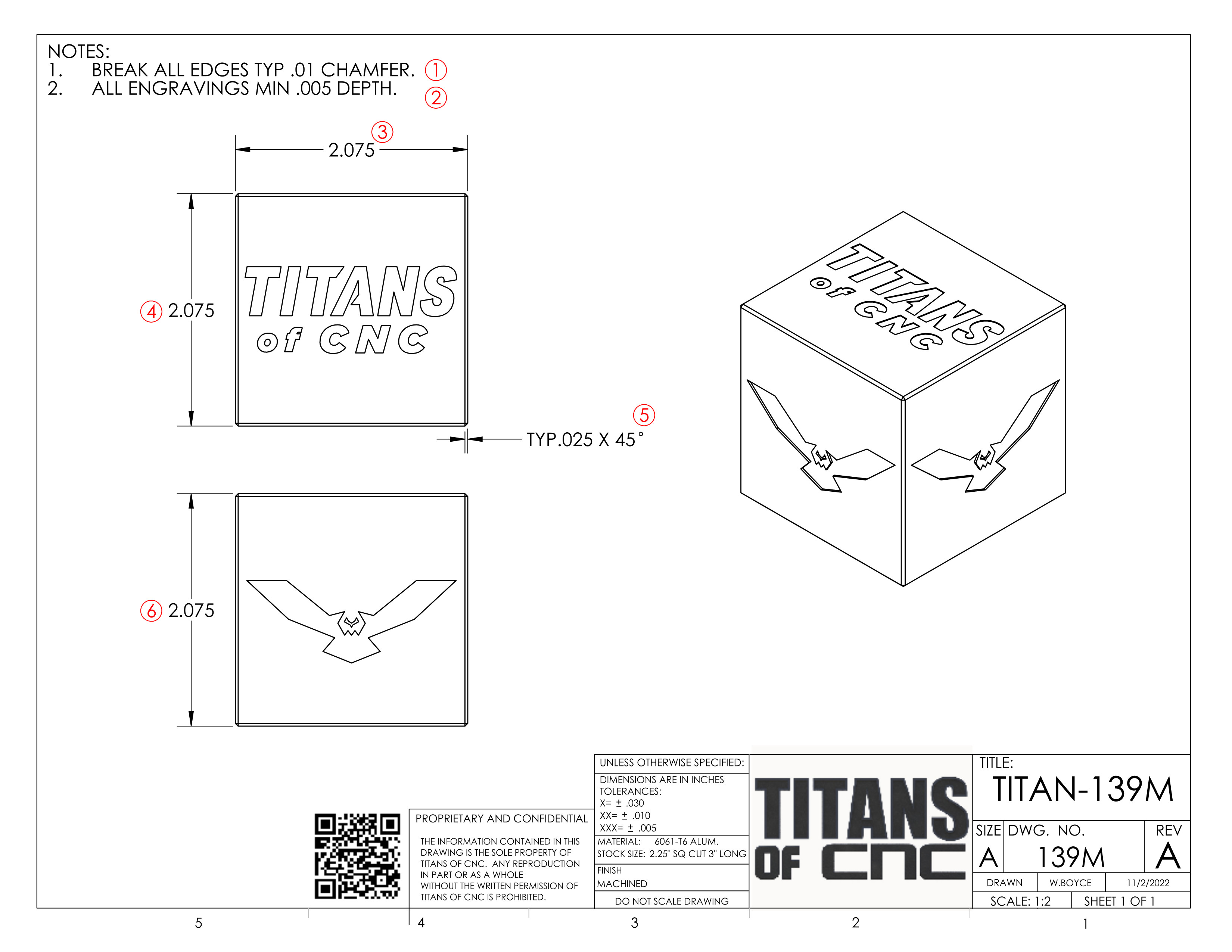

Detailed 2D drawing with tolerances
Titans of CNC reference print
Certificate of completion (5-Axis Series)
